- 850W, 80 PLUS Gold and Cybenetics Gold certified
- Compliant with PCIe 5.1 and Intel ATX 3.1
- Native 16-pin PCIe connector delivers up to 600W to PCIe 5.0 graphics cards; yellow-tipped connector shows proper insertion
- Fully modular with flat cables for easier cable management
- Fluid dynamic bearing 120 mm fan
- Protection: OCP / OVP / OPP / OTP / SCP / UVP

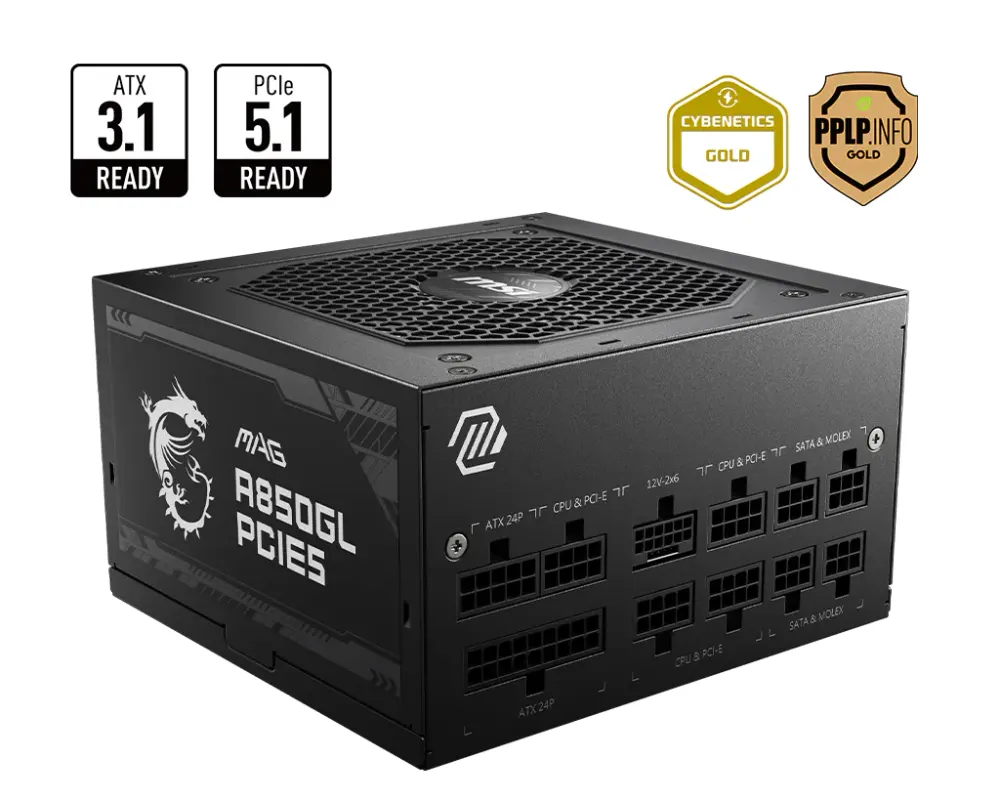

The MAG A850GL PCIE5 has an output port that is compliant with PCIe 5.1 and Intel PSDG (Power Supply Design Guide) ATX 3.1, and can hold up to 2x total power excursion and 3x GPU power excursion.
With a native 16 pin PCIe connector this power supply is ready for NVIDIA GeForce RTX 40 Series graphics cards and can pipe up to 600W of power to PCIe 5.0 graphics cards. The 80 PLUS Gold and Cybenetics Gold certification promises lower energy consumption and higher efficiency.
Specifications
| FDD (4 pin) | 1 |
|---|
| MOLEX (4 pin) | 4 |
|---|
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
|---|
| SATA (15 pin) | 8 |
|---|
| PFC Type | Active PFC |
|---|
| PCI-E (6+2 pin) | 4 |
|---|
| Dimension | 140 x 150 x 86 mm |
|---|
| PCI-E 5.0 (16 pin) | 1 (600W) |
|---|
| EPS (8 pin) | 2 |
|---|
| Fan Size | 120 mm |
|---|
| ATX (24 pin) | 1 |
|---|
| Efficiency | 80 PLUS Gold (up to 90%) |
|---|
| Input Frequency | 47-63Hz |
|---|
| Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
|---|
| Input Voltage Range | 100~240 VAC |
|---|
| Power Watt | 850W |
|---|
| Fan Bearing | Fluid Dynamic Bearing |
|---|
| Modular | Yes (full modular) |
|---|
| Model | MAG A850GL PCIE5 |
|---|
