- AMD B550 chipset, AM4 socket
- DDR4 memory, 4 DIMM slots, up to 128GB
- Built-in Wi-Fi (AC, up to 433Mbps)
- M.2 Shield Frozr thermal solution keeps M.2 SSDs from throttling
- Use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
- Micro-ATX form factor
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR is a thermal solution that keeps M.2 SSDs safe while preventing throttling. A USB key can be used to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Specifications
| Socket | AMD Socket AM4 |
|---|
| CPU (Max Support) | Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update |
|---|
| Chipset | AMD B550 Chipset |
|---|
| DDR4 Memory | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz by JEDEC and A-XMP OC MODE |
|---|
| Memory Channel | Dual |
|---|
| DIMM Slots | 4 |
|---|
| Max Memory (GB) | 128 |
|---|
| PCI-E x16 | 1 |
|---|
| PCI-E Gen | Gen4 / Gen3 |
|---|
| SATA III | 4 |
|---|
| M.2 Port | 2 |
|---|
| RAID | 0/1/10 |
|---|
| TPM (Header) | 1 |
|---|
| LAN | 1x Realtek RTL8111HN Gigabit LAN |
|---|
| USB 2.0 Ports (Front) | 4 |
|---|
| USB 3.2 Ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
|---|
| USB 2.0 Ports (Rear) | 2 |
|---|
| USB 3.2 Ports (Rear) | 4(Gen 1, Type A) |
|---|
| Audio Ports (Rear) | 3 HD audio connectors |
|---|
| Serial Ports(Front) | 1 |
|---|
| DisplayPort | 1 |
|---|
| VGA | 1 |
|---|
| HDMI | 1 |
|---|
| DirectX | 12 |
|---|
| Form Factor | MATX |
|---|

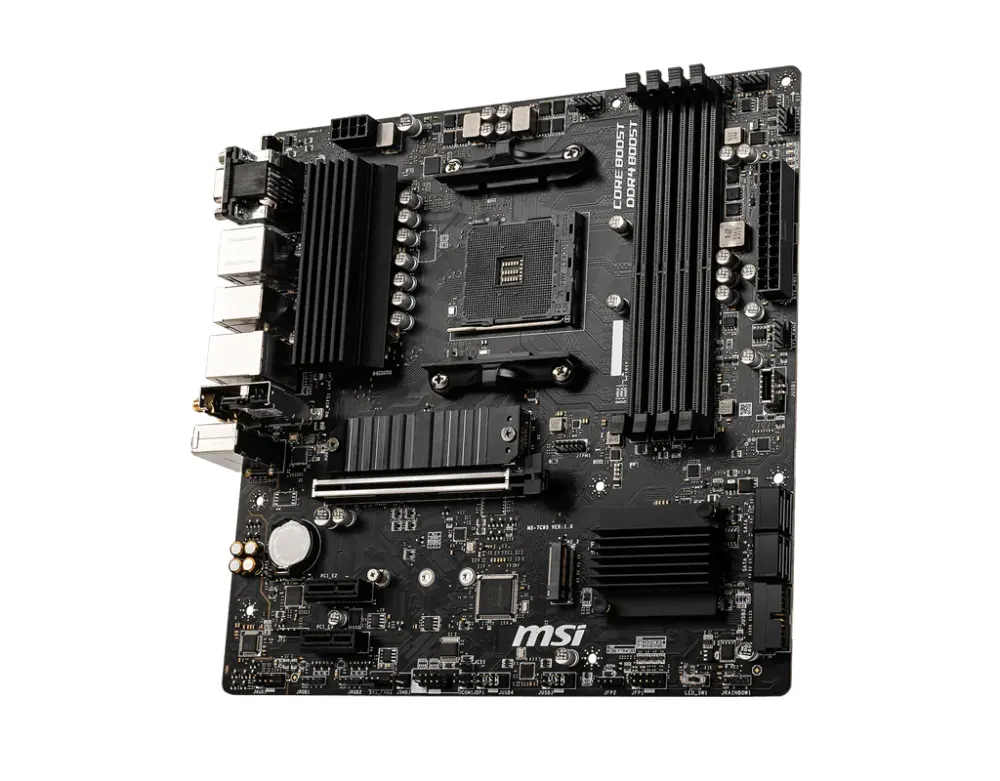

| Model | B550M PRO-VDH WIFI |
|---|
