MSI

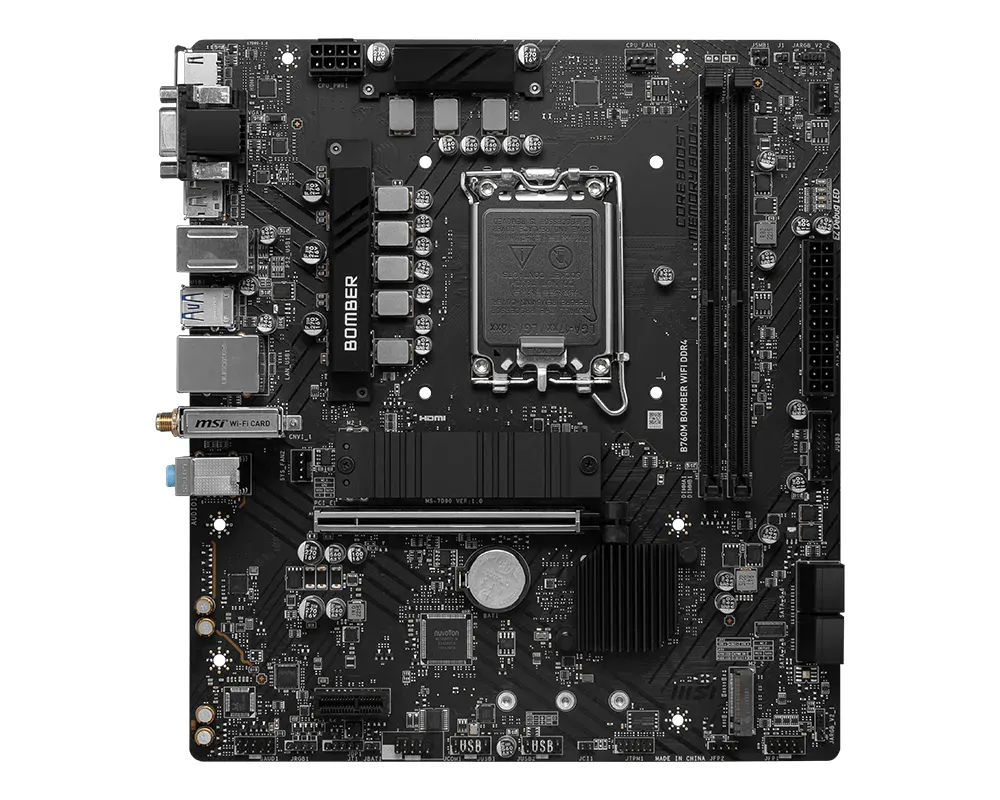

MSI B760M BOMBER WIFI DDR4 Motherboard

Product ID: 2412 Product code: B760M BOMBER WIFI DDR4 in PC Motherboards Intel Platform
  • Chipset: INTEL B760
  • Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
  • RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • LAN: Realtek RTL8125B 2.5Gbps LAN
Price on requestGet today's best price & availability on WhatsApp
Get Best Price on WhatsApp Call +91 7383433336
Buying in bulk? Request a B2B quote

Highlights

  • Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR4 memory, Dual Channel DDR4-4800+MHz (OC)
  • 2.5G LAN with Wi-Fi 6E solution
  • Steel Armor protects VGA cards against bending and EMI

Specifications

ChipsetINTEL B760
AudioRealtek ALC897 Codec; 7.1-Channel High Definition Audio
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LANRealtek RTL8125B 2.5Gbps LAN
ModelB760M BOMBER WIFI DDR4
Lightning Fast ExperiencePCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Audio Booststudio grade sound quality

Product description

  • Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR4 memory, Dual Channel DDR4-4800+MHz (OC)
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E solution
  • Audio Boost: studio grade sound quality
  • Steel Armor protects VGA cards against bending and EMI

MSI B760M BOMBER WIFI DDR4 Micro-ATX motherboard with Intel B760 chipset for Intel Core 14th/ 13th/ 12th Gen processors (LGA 1700) and DDR4 memory.

Core Boost and Memory Boost: premium layout and digital power design support more cores, and advanced technology delivers pure data signals for the best performance, stability and compatibility. 2.5G LAN with Wi-Fi 6E delivers a secure, stable and fast network connection.

Specifications

ChipsetINTEL B760
CPUSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Memory2x DDR4, Maximum Memory Capacity 64GB; Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC) ...; • 1DPC 1R Max speed up to 4800+ MHz
Onboard Graphics1x HDMI; Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz; 1x D-Sub; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Slot1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to (From CPU); PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
AudioRealtek ALC897 Codec; 7.1-Channel High Definition Audio
Storage2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G (Qty)
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB2x USB 2.0 (Rear); 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
LANRealtek RTL8125B 2.5Gbps LAN
Wireless LAN & BluetoothIntel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3, FIPS, FISMA

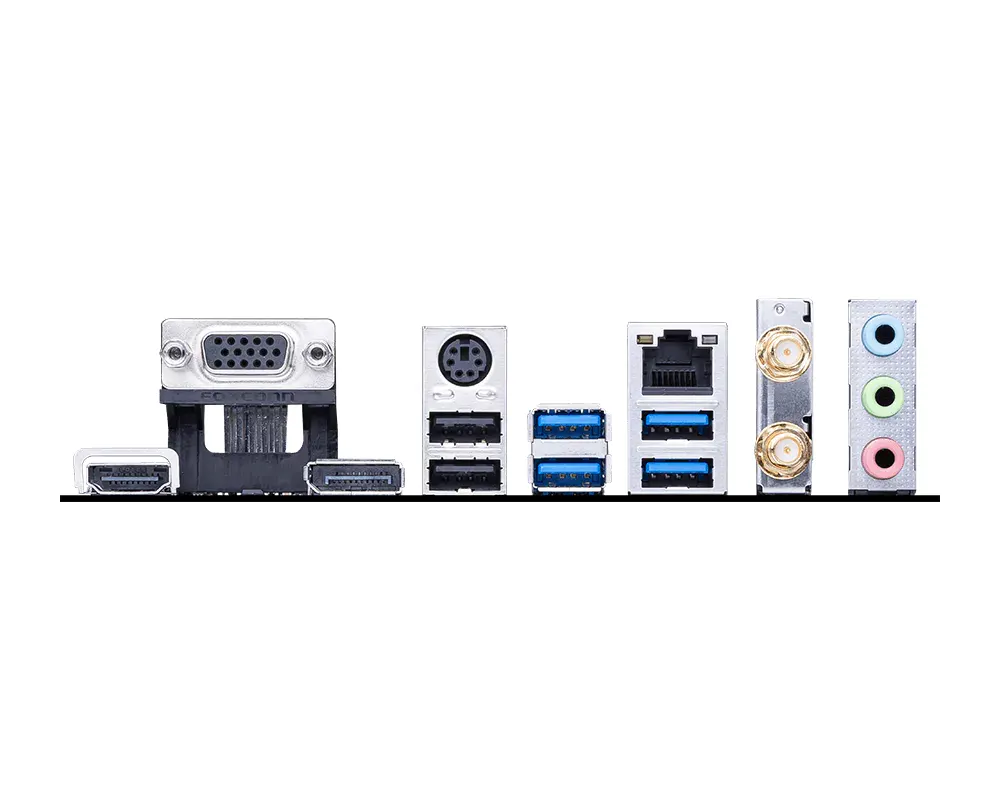

Back Panel PortsHDMI; VGA; DisplayPort; Keyboard / Mouse; 2.5G LAN; Wi-Fi / Bluetooth; Audio Connectors; USB 2.0; USB 3.2 Gen 1 5Gbps (Type-A)
ModelB760M BOMBER WIFI DDR4
