MSI PRO H610M-E DDR5 Motherboard
MSI PRO H610M-E DDR5 Motherboard – image 2
MSI PRO H610M-E DDR5 Motherboard – image 3
MSI PRO H610M-E DDR5 Motherboard – image 4
MSI PRO H610M-E DDR5 Motherboard – image 5
1 / 5
MSI

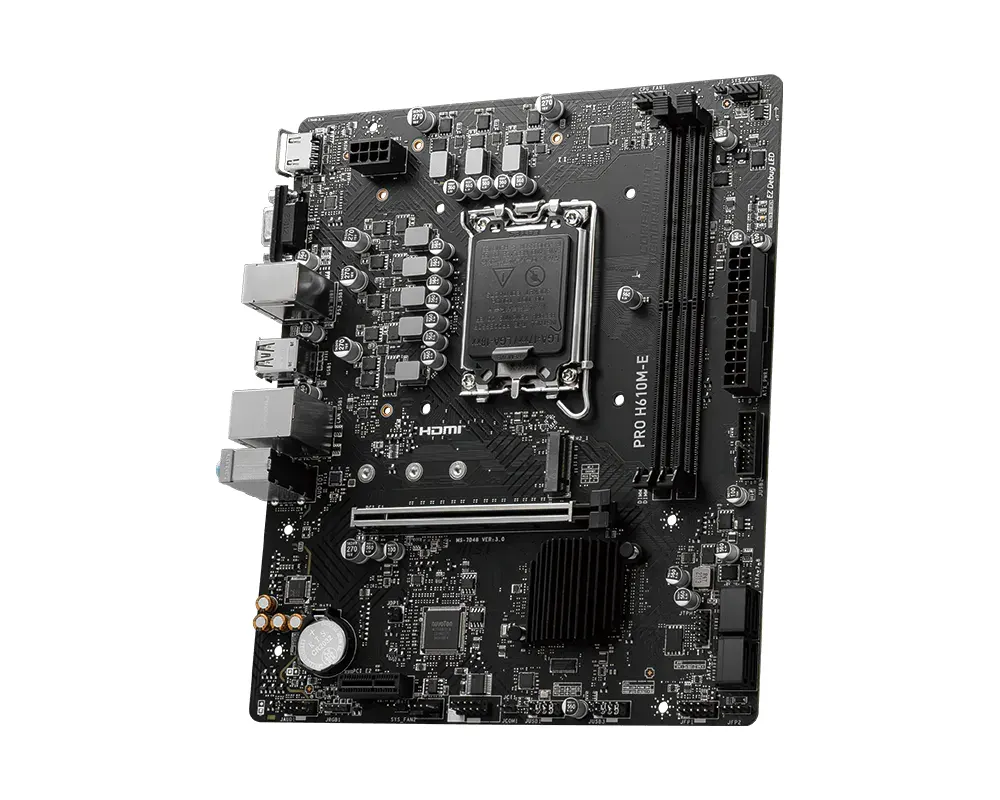

MSI PRO H610M-E DDR5 Motherboard

Product ID: 2415 Product code: PRO H610M-E in PC Motherboards Intel Platform
  • Chipset: INTEL H610
  • Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
  • LAN: Realtek RTL8111H Gigabit LAN
  • Model: PRO H610M-E (DDR5)
Price on requestGet today's best price & availability on WhatsApp
Get Best Price on WhatsApp Call +91 7383433336
Buying in bulk? Request a B2B quote

Highlights

  • Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • 2x DDR5 slots, up to 96GB, DDR5 5600 MHz
  • Gen 4 PCI-E with up to 64GB/s bandwidth
  • 1x M.2 slot and 4x SATA 6G
  • HDMI and VGA outputs; Realtek Gigabit LAN

Specifications

ChipsetINTEL H610
AudioRealtek ALC897 Codec; 7.1-Channel High Definition Audio
LANRealtek RTL8111H Gigabit LAN
ModelPRO H610M-E (DDR5)

Product description

  • Supports Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • 2x DDR5 slots, up to 96GB, DDR5 5600 MHz
  • Gen 4 PCI-E with up to 64GB/s bandwidth
  • 1x M.2 slot and 4x SATA 6G
  • HDMI and VGA outputs; Realtek Gigabit LAN
  • Micro-ATX form factor

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology, plus a Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.

Specifications

ChipsetINTEL H610
CPUSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700
Memory2x DDR5, Maximum Memory Capacity 96GB; Memory Support DDR5 5600 MHz (by JEDEC & POR); Supports Intel XMP 3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory
Onboard Graphics1x HDMI; Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz; 1x D-Sub; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Slot1x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to (From CPU); PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
AudioRealtek ALC897 Codec; 7.1-Channel High Definition Audio
Storage1x M.2 (Qty); M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G (Qty)
USB4x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front)
LANRealtek RTL8111H Gigabit LAN

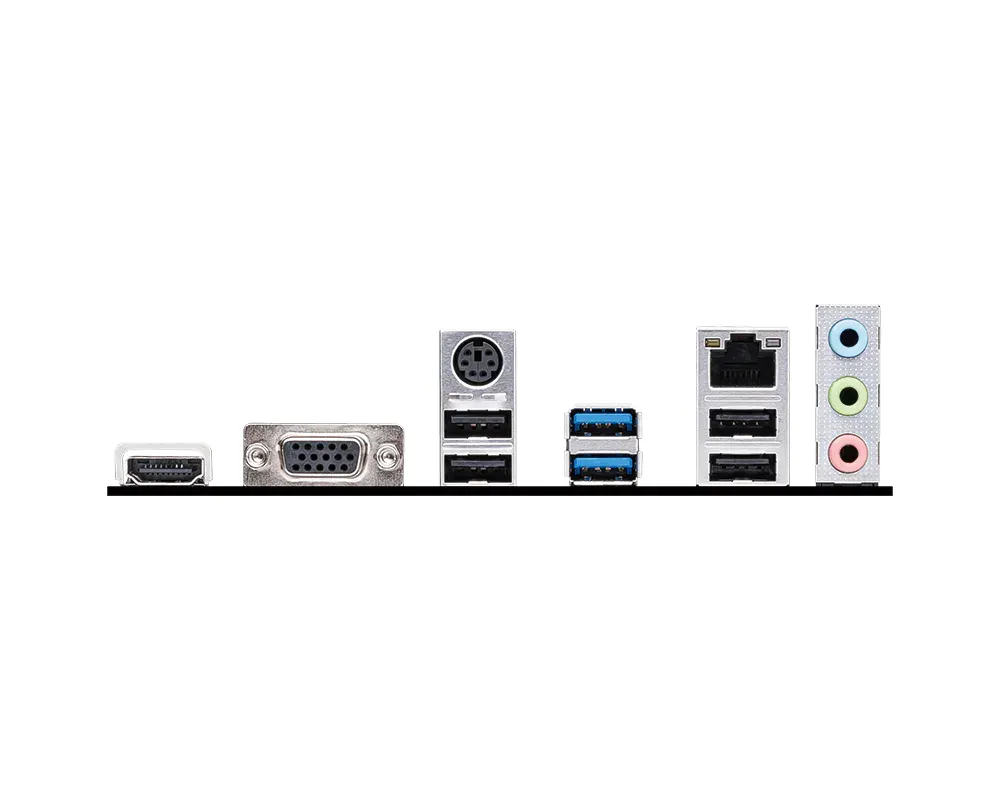

Back Panel PortsHDMI; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps (Type-A); LAN port; Audio Connectors; USB 2.0; USB 2.0
ModelPRO H610M-E (DDR5)
