| Chipset | INTEL B760 |
|---|
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors; LGA 1700 |
|---|
| Memory | 4x DDR4, Maximum Memory Capacity 128GB; Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC) ...; • 1DPC 1R Max speed up to 5333+ MHz |
|---|
| Onboard Graphics | 2x HDMI; Support HDMI 2.1, maximum resolution of 4K 60Hz; 2x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz |
|---|
| Slot | 2x PCI-E x16 slot (Qty); 1x PCI-E x1 slot (Qty); PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset); PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|---|
| Audio | Realtek ALC897 Codec; 7.1-Channel High Definition Audio |
|---|
| Storage | 2x M.2 (Qty); M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices; 4x SATA 6G (Qty) |
|---|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|---|
| USB | 2x USB 2.0 (Rear); 4x USB 2.0 (Front); 2x USB 5Gbps Type A (Rear); 4x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front); 2x USB 10Gbps Type A (Rear) |
|---|
| LAN | Realtek RTL8125BG 2.5G LAN |
|---|
| Wireless LAN & Bluetooth | Intel Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.3, FIPS, FISMA |
|---|
| Back Panel Ports | Keyboard / Mouse; DisplayPort; USB 5Gbps Type A ports; 2.5G LAN; Wi-Fi / Bluetooth; USB 2.0; HDMI; USB 10 Gbps Type A ports; Audio Connectors |
|---|

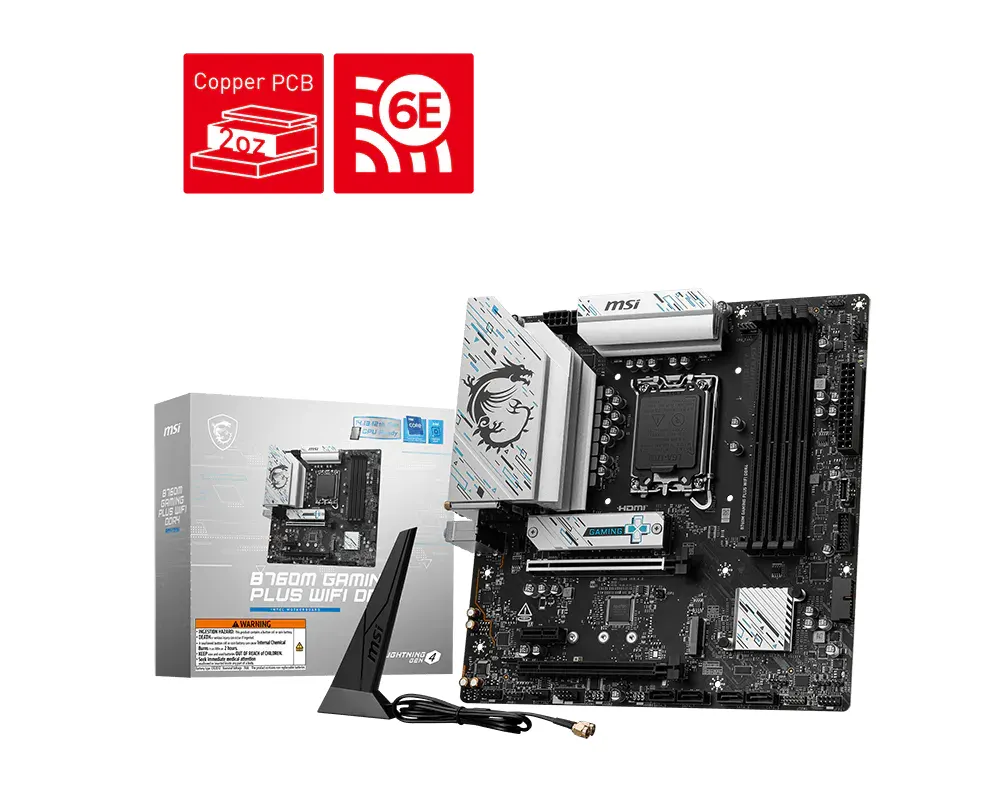

| Model | B760M GAMING PLUS WIFI DDR4 |
|---|
